EX300-3 EX300LC-3 EX300H-3 EX300LCH-3 Hitachi Pump Assembly 9122780 9136850 Excavator Hydraulic Pump Repair Kit

EX300-3 EX300LC-3 EX300H-3 EX300LCH-3 hitachi pump assembly 9122780 9136850 Excavator Hydraulic Pump Repair Kit

PRODUCT DESCRIPTION
Model:EX300-3 EX300LC-3 EX300H-3 EX300LCH-3 single pump excavator hydraulic pump	Ategory: Hydraulic Pump
Brand:Hitachi	Place of Origin:Other Country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

The hydraulic pump is a critical component that obtains power from the engine and converts it into hydraulic oil flow. This high-pressure fluid moves your boom, arm, bucket, and swing with incredible force and precision through hoses. Without a sturdy and reliable pump, even the strongest excavator will become sluggish and powerless. Choosing the right pump is not only about power; This is about perfectly matching the capacity and pressure rating of the pump with the size and typical operation of the machine. A pump that is too small in size will struggle, overheat, and quickly wear out. An excessively large pump wastes the power and fuel of the engine. This is the core of efficiency and productivity.

The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.

Product Advantages

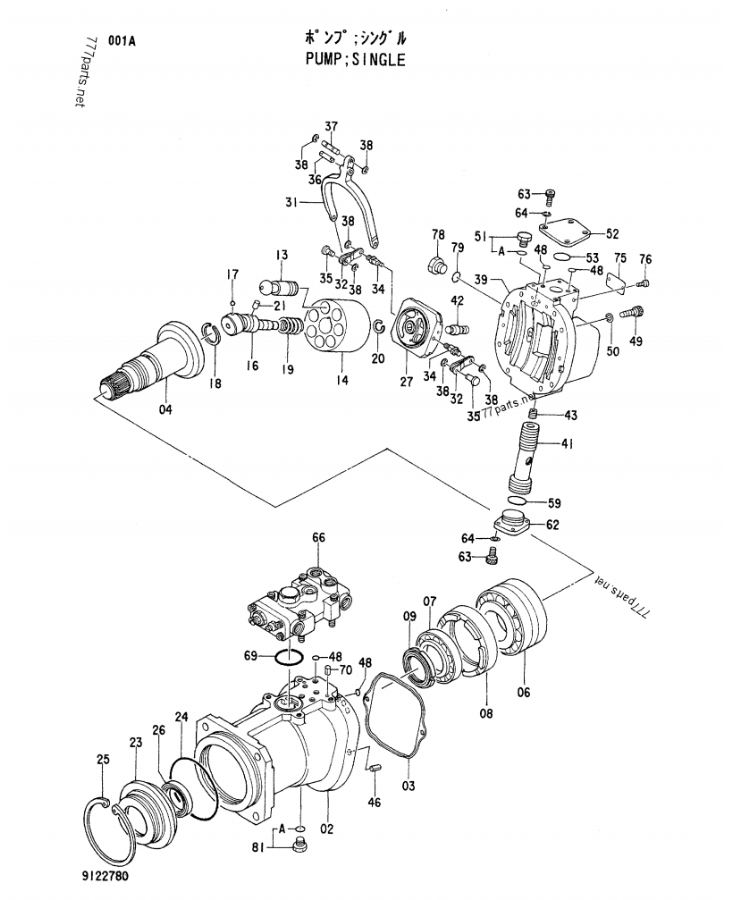

List of spare parts

#	Part No	Part Name	Qty.	Price request
	9122780	PUMP; SINGLE	2
	(9136850)	PUMP; SINGLE	2
02	1014184	. CASING; PUMP	1
03	8046112	. PACKING	1
04	2023051	. DISC; DRIVING	1
06	4190694	. BRG.; ROL.	1
07	4209323	. BRG.; ROL.	1
08	3035965	. SPACER	1
09	4191665	. NUT; BRG.	1
13	8049118	. PISTON	7
13	8051275	. PISTON	7
14	2022744	. ROTOR	1
16	8035539	. SHAFT; CENTER	1
17	4184779	. BALL	1
18	4191667	. RING; RETAINING	1
19	4194362	. SPRING; COMPRES.	1
20	4193062	. RING; RETAINING	1
21	4198956	. PIN	1
23	3035966	. COVER; SEAL	1
24	4191664	. O-RING	1
25	4094325	. RING; RETAINING	1
26	4232070	. SEAL; OIL	1
27	9742978	. VALVE	1
31	3039569	. LINK	1
32	9724756	. LEVER	2
34	4179179	. PIN	2
35	4179177	. PIN	2
36	4200227	. PIN	1
37	4179176	. PIN	1
38	4146370	. RING; RETAINING	6
39	1011957	. HEAD	1
39	1011956	. HEAD	1
41	3036326	. PISTON; SERVO	1
42	4193245	. PIN	1
43	4179838	. SCREW; SET	1
46	4099290	. PIN; SPRING	2
48	4180349	. O-RING	10
49	M341245	. BOLT; SOCKET	8
50	495841	. WASHER; SPRING	8
51	4108720	. PLUG	1
51A	957366	.. O-RING	1
52	4204862	. STOPPER	1
53	955020	. O-RING	1
59	984623	. O-RING	1
62	4216295	. STOPPER	1
63	M340820	. BOLT; SOCKET	8
64	4514388	. WASHER; SPRING	8
66	9122781	. REGULATOR	1
66	(9136851)	. REGULATOR	1
69	A810055	. O-RING	1
70	4515041	. PIN; SPRING	2
75	3065868	. NAME-PLATE	1
76	M492564	. SCREW; DRIVE	2
78	4211432	. PLUG	1
79	4506424	. O-RING	1
81	9089486	. PLUG	1
81A	4509180	.. O-RING	1

Excavator Hydraulic Pumps:

Hyundai	R110-7	K3V63DT-1R0R-9N1S-1C
Hyundai	R130LC-3	K3V63DT-1R0R-9N01-2A
Hyundai	R140LC-7	K3V63DT-1R0R-9C0S-1D
Hyundai	R160LC-3	K3V63DT-1R0R-9N1S-B
Hyundai	R210LC-3	K3V112DT-1RER-9C39-1
Hyundai	R210LC-7	K3V112DT-1CER-9C32-1
Hyundai	R210LC-7A	K3V112DT-1LHR-9C32
Hyundai	R220LC-9S	K3V112DT-1DFR-9N62
Hyundai	R250LC	K3V112DT-1RER-9C39-1
Hyundai	R250LC-7	K3V112DT-1CER-9C32-2B
Hyundai	R250LC-7A	K3V112DT-1LHR-9C52
Hyundai	R290LC-3	K3V140DT-1R2R-9N29-A
Hyundai	R290LC-7	K3V140DT-1CER-9C12-D
Hyundai	R290LC-7	K5V140DTP1K9R-9C12-L
Hyundai	R290LC-7A	K5V140DTP1J9R-9C12-1AL
Hyundai	R290NLC-7A	K5V140DTP1J9R-9C12-1AL
Hyundai	R300LC-9	K5V140DTP1E9R-9N02-1
Hyundai	R300LC-9A	K5V140DTP1E9R-9N02-1
Hyundai	R305LC-7	K5V140DTP1J9R-9C12-AL
Hyundai	R320LC-7	K3V180DT-1RER-9C69-DL
Hyundai	R320LC-7A	K3V180DT-1RER-9C69-DL
Hyundai	R350	K3V180DTH1H1R-9N4S-1T
Hyundai	R360LC-7	K3V180DTH1P0R-9C0S
Hyundai	R360LC-7A	K3V180DTH1P0R-9C0S-1AL
Hyundai	R450LC-7	K5V200DTH10JR-9C0Z-VT
Hyundai	R500LC-7	K5V200DTH10JR-9C0Z-VT
Hyundai	R3000LC-7	K5V140DTP1H9R-9C12
